Our Products

Australian-made portable and modular building solutions. Browse by category below.

Sucasa Expandable Amenities Container Domes Stormwater Pipes & Headwalls Shower Enclosures Diamond Grid

The strongest surface stabilisation and erosion control system.

For more than 15 years, Diamond Grid™ has been servicing 27 countries around the world, providing erosion and stabilisation control solutions for:

Diamond Grid™ is a lightweight 100% recycled grid system that is strong and durable. Its diamond pattern and polypropylene material provide excellent strength and load-bearing capacity.

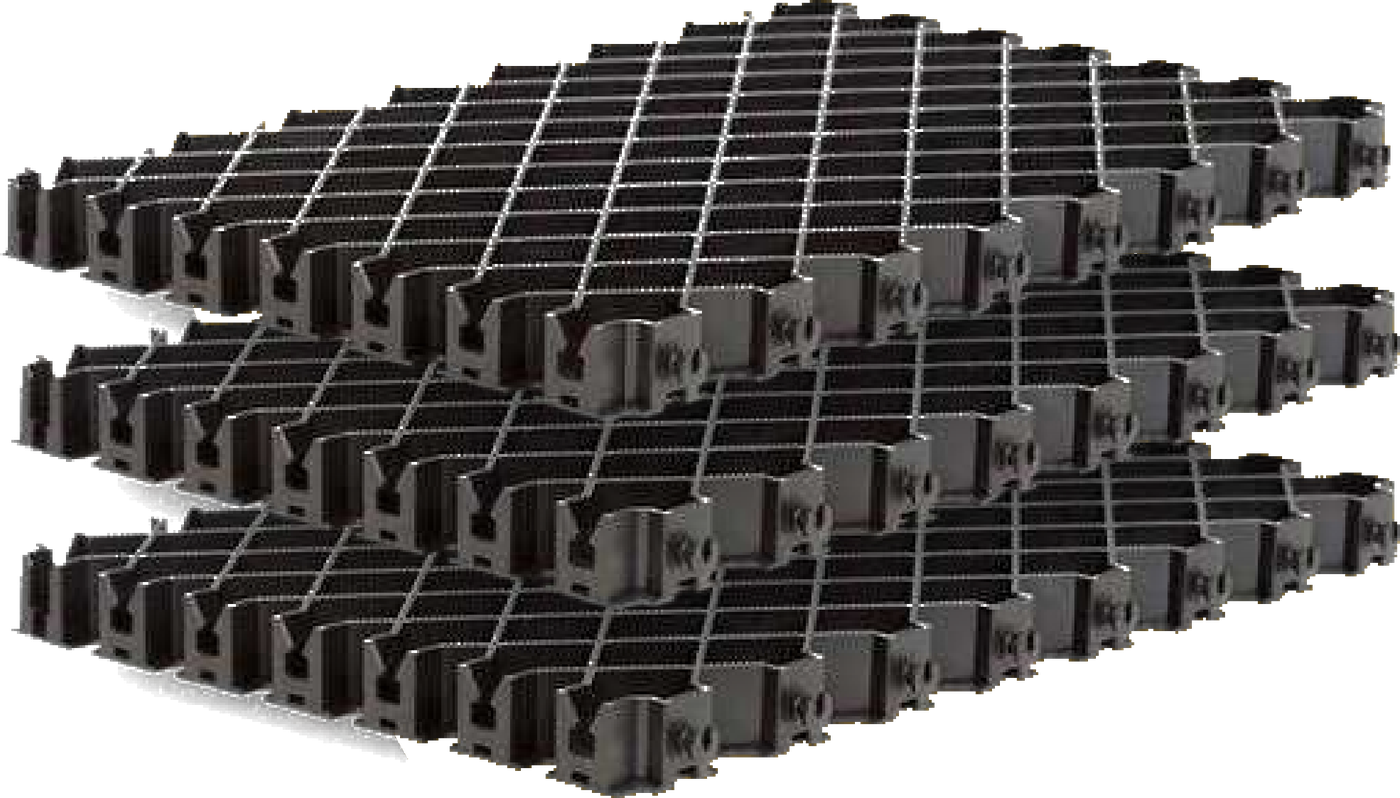

Three interlocking Diamond Grid panels stacked

Toughen your terrain

Australian Made

Diamond Grid - Black

DiamondGrid™ is a heavy-duty surface stabilisation and erosion control system made from 100% recycled, UV-treated polypropylene. Engineered for extreme loads with a crush resistance of up to 7,000 tonnes/m² and up to 96% permeability, it is suitable for civil, mining, landscaping, and rural applications.

From

$35/m²

Specifications.

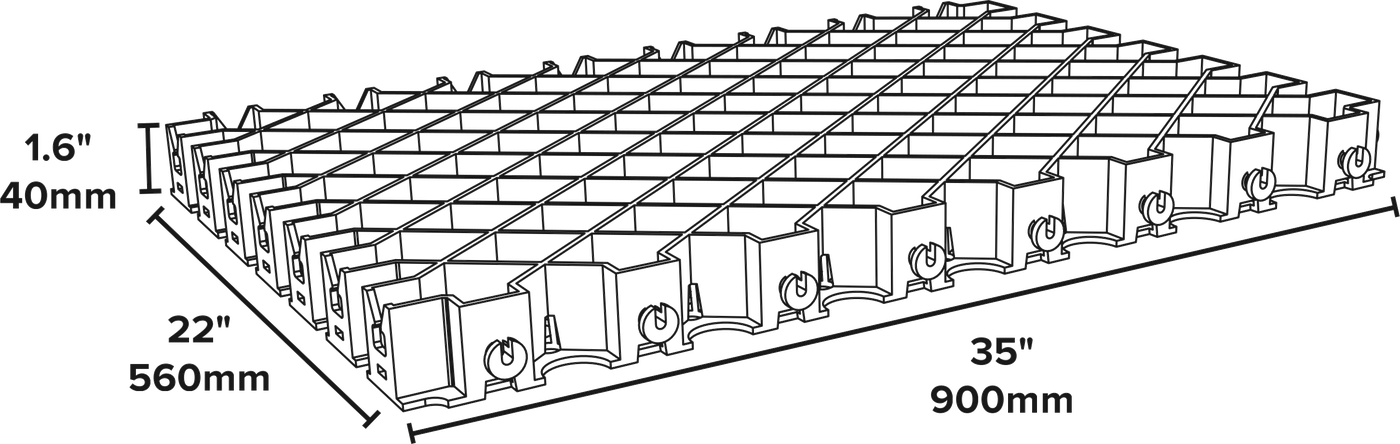

Diamond Grid panel dimensions: 900mm wide, 560mm long, 40mm high

Grid size: 900mm W × 560mm L × 40mm H (35" × 22" × 1.6")
Coverage per grid: 0.504 m² — approx. 2 grids per m²
Weight per grid: 3.2 kg (7.05 lb)
Permeability: Up to 96%

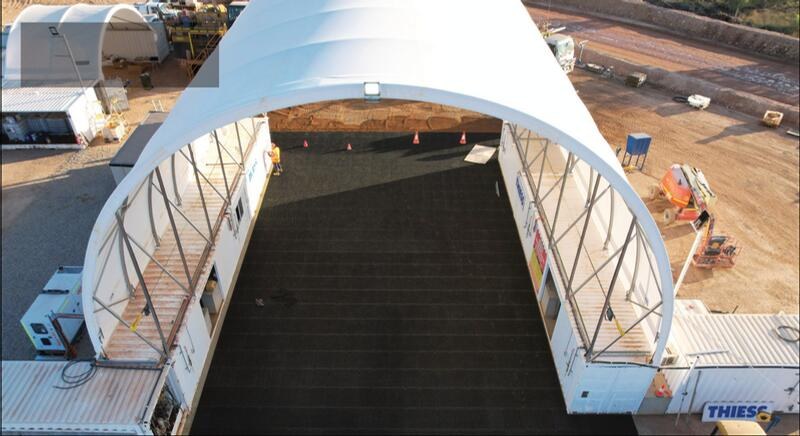

Diamond Grid floor inside a container shelter

Where it's used

Concrete
Concrete pavements · Hardstands · Workshops · Shed floors
Mining & Civil
Hardstands · Access roads · Car parks · Heavy vehicle workshops · Haul roads · Railway sidings · Camps & office blocks · Shed floors · Fixed plant pavements
Golf Courses
Machinery roads · Cart paths · Bunker edging · Landscaping · Parking · Sidewalks · Club house surrounds · Grassed areas · High traffic areas
Rural & Agriculture
Machinery roads · Stock yards · Horse arenas · Access roads · Equine · Paddock shelters · Driveways · Trough pads · Day yards · Stable floors · Shed floors
National Parks
High traffic areas · Turf stabilisation · Access roads · Landscaped surrounds · Pathways · Car parks
Residential
Driveways · Turf stabilisation · Landscaping · Shed floors · Outdoor areas · Hardstands · Pathways · Side access

7,000+tonnes/m²

Load capacity

Filled with gravel or road base

96%

Permeability

Unbound pavements, up to

76%

Lower install cost

Against traditional concrete

100%

Recycled plastic

UV-stabilised polypropylene

Fill options

Diamond Grid™ takes concrete, turf, road base, quartz, stone, cement stabilised sand and asphalt — so the finished surface can blend into its surroundings or take the hardest wear you have.

Diamond Grid filled with concrete — Concrete

Diamond Grid filled with roadbase — Roadbase

Diamond Grid filled with quartz — Quartz

Diamond Grid filled with 7–12mm stone — 7–12mm stone

Diamond Grid filled with cement stabilised sand — Cement stabilised sand

Diamond Grid filled with crushed stone — Crushed stone

Diamond Grid filled with asphalt — Asphalt

How it compares

Diamond Grid™ against the three surfaces it usually replaces.

	Concrete	Concrete slabs / pavers	Asphalt	Diamond Grid™
Longevity	15–20 years	10–15 years	5–10 years	30+ years
Materials required	Cement and steel mesh, framework required	Pre-cast cement slabs	Asphalt mixture (tar and aggregate)	100% recycled polypropylene
Maintenance	Low — prone to cracking and becoming unlevel	Low — can become cracked and unlevel	High — top seal every 2–3 years	Very low — may need some gravel or grass upkeep
Cost & appearance	Black, uniform, industrial, high cost	Options available at a cost	Uniform, options at a higher cost	A variety of low-cost fills that blend into the environment
Permeability	N/A	15–30%	N/A	Up to 100%
Depth	3–11" depending on application	4–6" depending on application and loads	Average 4–4.5"	1–2"
Eco friendliness	High impact, not recyclable or reusable, high ground runoff	High impact, not recyclable, needs waste disposal if removed	High impact, oil-based derivatives, not recyclable or reusable	Low impact — recycled, movable, reusable, low runoff

Up to 77%

Project time

Up to 90%

Slab thickness

Up to 96%

Curing time

100%

Recycled plastic used

Up to 76%

Total project savings

Compared with a 400mm traditional concrete slab.

Features & benefits

Up to 76% less installation cost than traditional concrete
Up to 91% less concrete used
Eliminates operational downtime — drive on 24 hours after a concrete pour
Reduces maintenance frequency by up to 70%
Reduces maintenance costs by more than 75%
Distributes loads evenly and provides semi-rigid load-bearing capacity
Acts as a bridging layer over differential settlement
Reduces subgrade preparation and pavement thickness
Increases traffic load without increasing pavement thickness
Vehicles travel 50–75% faster on level, solid roads
Improves vehicle fuel economy and reduces staffing needs
Eliminates 90% of safety issues and vehicle accidents from potholes and corrugation
Made from 100% recycled plastic — reduces your carbon footprint
UV stabilised for harsh Australian conditions

Technical specifications

Material: 100% recycled, UV-treated polypropylene
Grid size: 900mm W × 560mm L × 40mm H (35" × 22" × 1.6")
Coverage per grid: 0.504 m² — approx. 2 grids per m²
Weight per grid: 3.2 kg (7.05 lb)
Internal cell size: 40mm × 40mm
Cell wall thickness: 3.5mm
Open cell area: Top 94% / bottom 65%
Crush resistance (filled with gravel/road base): 7,000+ tonnes/m² (700+ tons/sq ft)
Crush resistance (empty grid): 300 tonnes/m² (30 tons/sq ft)
Permeability: Up to 96%
Fill ratio: 1m³ of fill per 26m² (1 cu yd per 207.9 sq ft)
UV resistance: High — 2% carbon black UV stabiliser
Chemical resistance: High
Toxicity: Non-toxic
Fill materials: Road base, gravel, pebbles, grass, soil, concrete, asphalt
Installation type: Interlocking grid system
Base requirements: Minimal — depends on traffic load
Colour: Black

Load tested by the University of Southern Queensland Faculty of Engineering and Surveying Centre of Excellence in Engineered Fibre Composites, and by Sageos / CTT Group.

Specifications and product details are subject to change without notice. Images are for illustration purposes only. Figures are taken from the Diamond Grid™ product brochure, August 2026.

Case studies

A selection of Diamond Grid™ installations from the product brochure.

Concrete hardstand

6,000 m²

Challenge: A cost-effective, durable solution to support heavy mining equipment at a heavy haulage facility.
Solution: Diamond Grid™ saved 65% over traditional concrete, with a tailored pavement plan, proper subbase prep and efficient installation.
Outcome: A robust, low-maintenance surface that handles heavy loads and lifts operational efficiency.

Heavy vehicle workshop slab

2,500 m²

Challenge: A durable workshop floor for heavy mining equipment, facing high costs and long construction times with traditional concrete.
Solution: Diamond Grid™ was installed over compacted road base and completed in 2–3 days.
Outcome: Operational within 7 days, reducing costs and disruption.

Industrial lay-down area

12,000 m²

Challenge: A reliable all-weather pavement to support heavy machinery and forklifts, minimising downtime.
Solution: A Diamond Grid™ unbound pavement gave a cost-effective, tough surface with quick installation.
Outcome: A low-maintenance pavement, operational within 7 days.

CHPP pavement solution

Challenge: A sealed pavement around the fixed plant to improve safety, manage coal spills and reduce water accumulation with minimal operational disruption.
Solution: Diamond Grid™ delivered a 78% cost saving over concrete, with quick sectional installation for a sealed, easy-to-clean surface.
Outcome: A safer, low-maintenance pavement installed with minimal disruption.

Holiday park turf stabilisation

1,050 m²

Challenge: A reinforced grass surface to withstand heavy foot and vehicle traffic while keeping a natural look.
Solution: Grass-filled Diamond Grid™ was installed for stability, erosion control and improved drainage.
Outcome: A long-lasting surface that preserves natural grass while preventing rutting and wear during peak use.

Remote private access road

350 m

Challenge: A sandy road with steep inclines needed a durable solution to improve access, withstand harsh weather and minimise maintenance.
Solution: Diamond Grid™ was installed and filled with aggregate, improving surface stability, load-bearing capacity and erosion resistance.
Outcome: Quick installation, improved terrain stability and reduced long-term maintenance.

Installed across Australian mining and civil sites

Diamond Grid™ has been supplied into these operations, among others.

Belyando Central QLD — warehouse, laydown area & hardstands
Boyne Smelter — laydown area & hardstands
Blackwater — satellite workshop for heavy vehicles
Curragh Mine — concrete pavements around the fixed plant
Mt Isa, Anthill Mine — heavy vehicle workshop slab
Mangoola Coal — water truck fill point & all-weather access roads
Chinchilla QLD — workers camp pathways
Newman — camps & offices

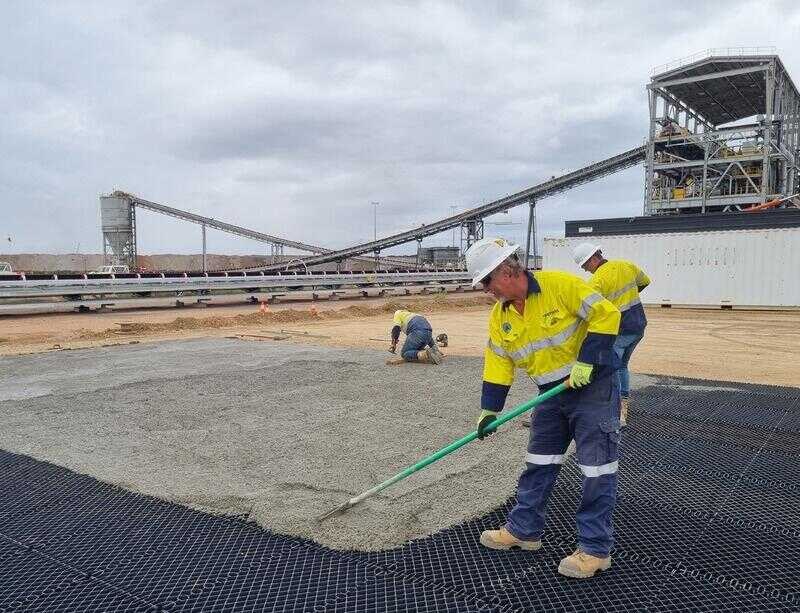

Diamond Grid concrete pavement installation at Belyando Central, Queensland

How it's supplied

Pallet	Full	Half
Coverage	55 m²	25 m²
Panels	110	50
Pallet dimensions	120 × 120 cm	120 × 120 cm
Packed height	2,400 mm	1,150 mm
Pallet weight	420 kg	210 kg

Empty pallet 120 × 120 × 20cm H. Pallet weights are indicative — confirm freight with our team when you order.
